Solar Glazed Carports

Charge your car and your home

With the transition to electric vehicles, now more than ever it makes sense to power your car from our own clean renewable solar energy source – saving the planet and your fuel bills. What better way than a solar glazed carport. Our unique range of solar carports designed to suit every environment and budget will not only provide a shelter from the weather but can power your car and home.

With NewFrame you can be assured that our innovative technology, advanced engineering and latest architectural designs will add value to your home for many years to come. Our solar glazed carports are capable of generating 3,000kWh of endlessly renewable electricity per year, enough to power the average plug-in electric vehicle for over 12,000 miles a year in the UK.  That means free car travel for life.

Combine with battery storage

Combined with battery storage, EV chargers and grid connection our intelligent solar controls can also optimise your power usage and minimise your costs. As leaders in solar-glazed renewable energy Newframe can deliver the full package from design, integration, construction and commissioning, or just the kit for you to self-install.

Newframe offers a range of standard Solar Carport designs as well as bespoke solutions, deploying our unique transparent solar glazed PV glass or conventional solar panels that are ideal for the watertight roof.  We also offer integrated EV plugs (from a range of leading manufacturers) as well as integrated smart battery storage, inverters and lighting where required.

Y-Frame Design - Cantilever Structure

Cantilever Structure

Our latest cantilever carport design minimises the structural floorplate to provide easy access and simple installation.  Suitable for positioning at the side, front or rear of the property. The carport can be angled to optimise sunlight captured and fit within the site.

Durable Canopy

The carport framework is fabricated from curved tubular carbon steel and is galvanised, and powder coated to ensure a maintenance free life. The solar glazed roof canopy offers a unitised watertight aluminium frame with solar PV laminated glazing panels.

Integrated Systems

The carport structure incorporates both the solar panels and cabling within its frame, as well as the control panel for both the solar electrical grid connection and electric vehicle charging point (EVCP). Providing points. This provides a secure, safe, and aesthetic design to complement your home and car.

Convenient Installation

The carport structure can be installed by our professional team using prefabricated foundations, that minimise disruption and associated ground works costs or can be installed on a preformed concrete bed foundation. In most cases there is no need for trenching or repaving.

Solar PV

Our Y-frame carport design can support our innovative range of solar PV glass technologies to provide a waterproof and translucent roof to the carport.  This includes our unique see-through transparent thin-film solar glass panels as well as our mono-crystalline solar cells embedded in a glass laminate that offer various levels of light transmittance.

Specifications

Our standard Y-frame design delivers a canopy of ~15 m² (~4.2m width x ~5.4m Length.  Height 2.4m at lowest and 3.5m and highest. 5° degree pitch.  Front or rear facing roof. An integrated 7kW EO tethered EV charger is included. Peak power up to 4.2kWp*.  Variable bespoke dimensions are available in increments related to standard PV panel sections.

H-Frame Design Solar Carport

Four leg support

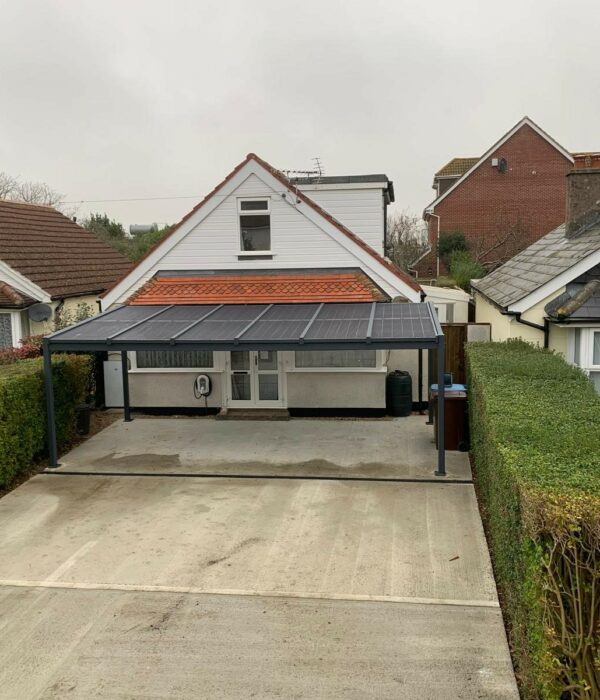

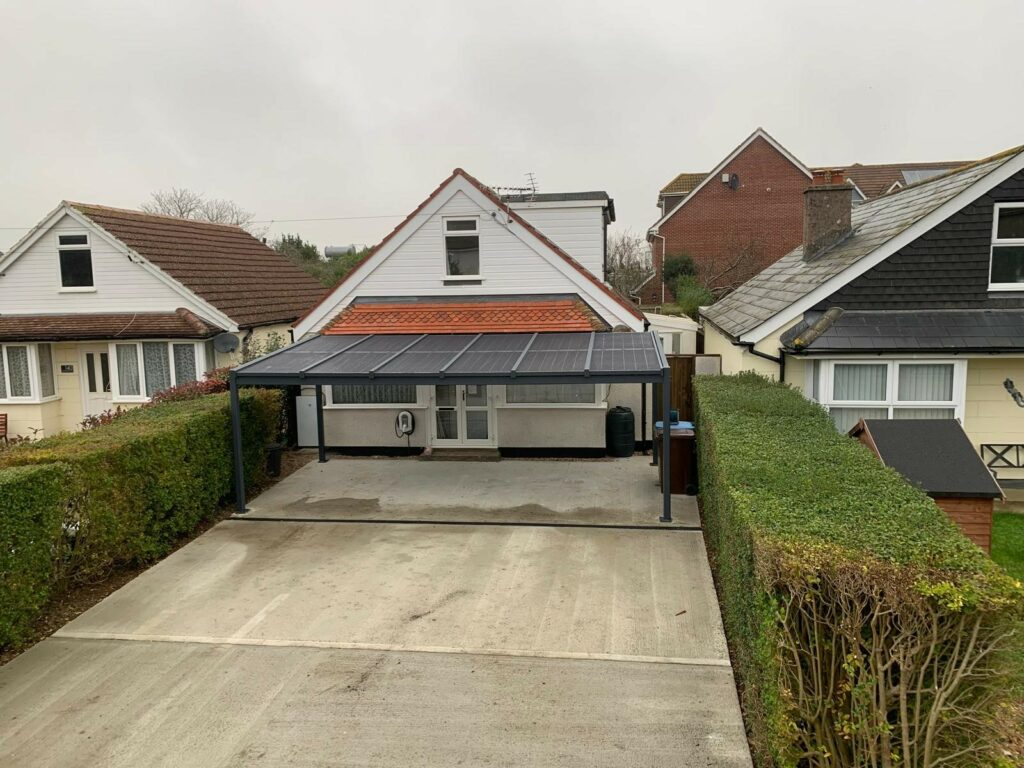

This four leg conventional solar glazed carport design offers a slim aesthetic profile that will blend in with most driveways.  As a modular self supporting solar canopy structure there are many sizing options available and the structural aluminium roofing can be mounted on bespoke frameworks if required.

Solar PV Roof

The innovative design means all the solar cabling is hidden and protected in the framework.  Equally the EV charging ports and inverters can be housed within the framework.

Specifications

Available in gun metal grey the modern design can accommodate our see-through PV glass, as well as semi transparent glass laminate and conventional framed solar panels. The canopy can be attached directly to a building or stand alone.

Bespoke Carports

Newframe have been working with leading architects, designers and fabricators to create a beautiful oak posted solar glazed carport which provides the prefect tailored solution to your transport and home needs.  We fabricate carports, garages and structures from materials that suit and blend with your property , are renewable sustainable and eco friendly

AVERAGE ENERGY SAVING COST GUIDE

BASED ON Semi-transparent Glazing option

Small house

Single Carport
No of panels 8
Annual production 3270kWh

Annual Saving £1,200
Monthly saving £100

Smart Battery 5kW

A small home will consume about 4 kilowatts per day on average over a year

Medium house

Canopy
No of panels 10
Annual production 4061kWh

Annual Saving £1,500
Monthly Saving £125

Smart Battery 6kW

A medium home will consume about 8 kilowatts per day

Large house

Double Carport
No of panels 14
Annual production 5685kWh

Annual saving £2,100
Monthly Saving £175

Smart Battery 10kW

A large home will consume 10-12kilowatts or more per day

Average figures based on 37p/kW i.e. the Energy Price Cap.

Our products & services

Newframe offer a full Design, Manufacture and Build Project Management service. We offer technical advice that works best for your property and your needs and our range of Solar Carports are the only ones available on the UK market today

Newframe’s products integrate into your existing home and way of life in a way that delivers best-in-class performance at the best price for endless power and lower energy costs from Day 1
